TG100 Extra Large Lift Table 1000kg 1.36m

Extra Large Mobile Scissor Lift Table Model: TG100 – 1000kg Capacity

The TG100 is an extra large mobile scissor lift table, which has a 1000kg capacity. It has a heavy duty steel construction with thick powder coated finish.

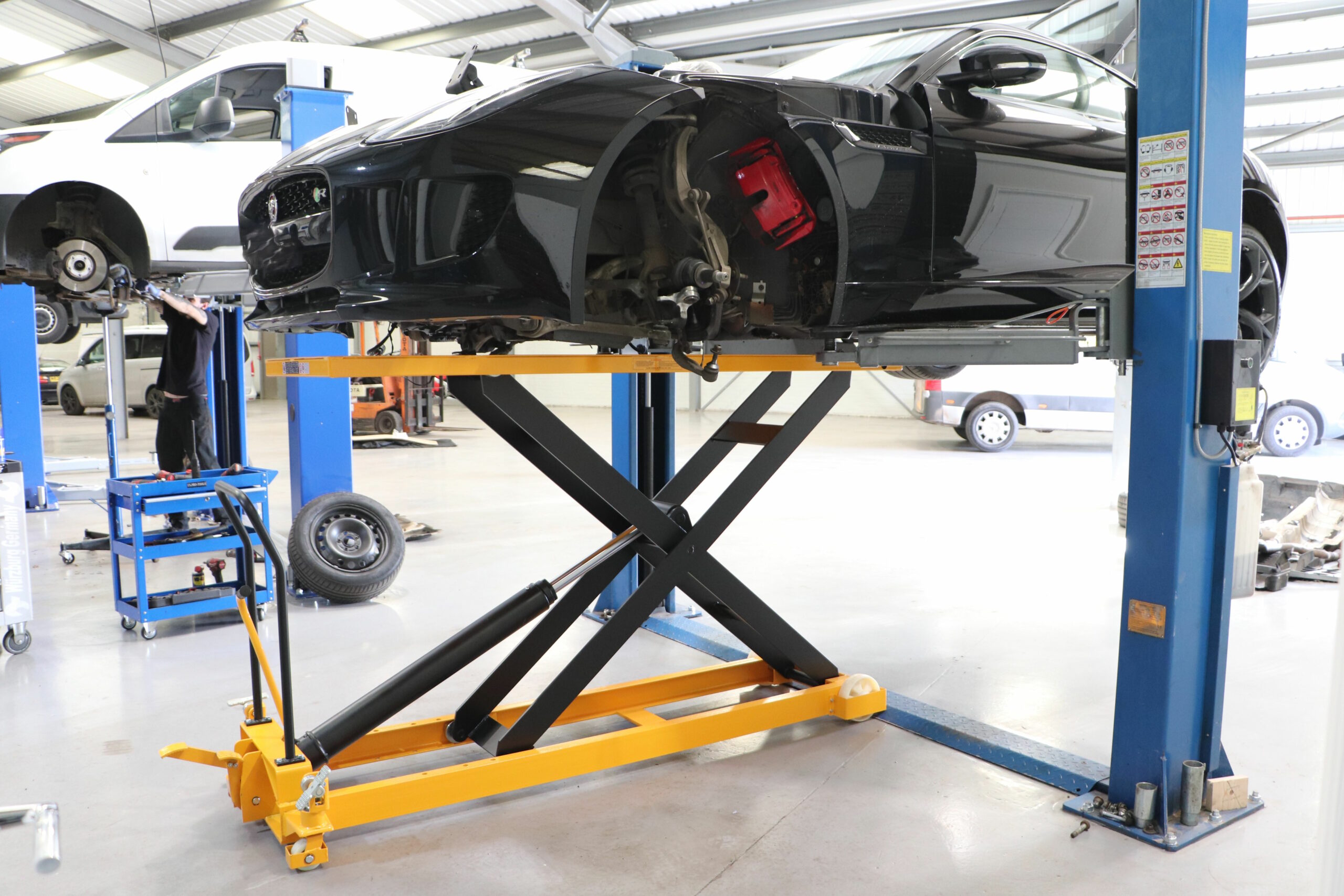

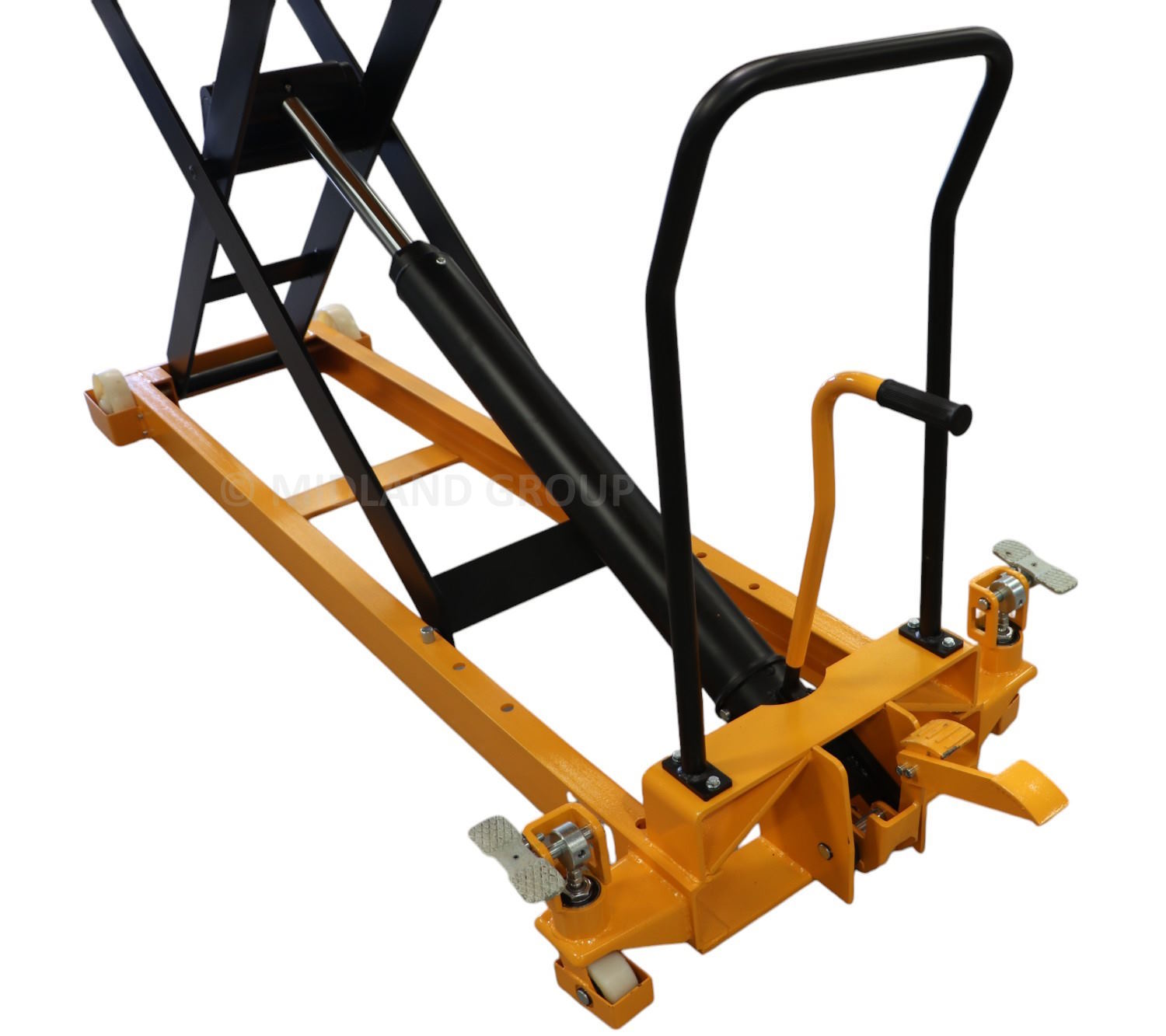

The table top area is much larger than normal, 2035x750mm – making it very useful for example, for lifting large items so they can be worked on or moved. Single stage foot operated pump for reliability. Hand operated table descent. Overload by-pass valve to protect the operator and pump. Lifts from 360mm up to a maxi-mum of 1360mm (1.36 metres) The Table utilises front fixed wheels and rear casters with brake function

Capacity 1000Kg
Max table Height 1360mm
Min. Table Height 360mm
Table / Platform Size 2035x750mm
Table Top Depth 55mm

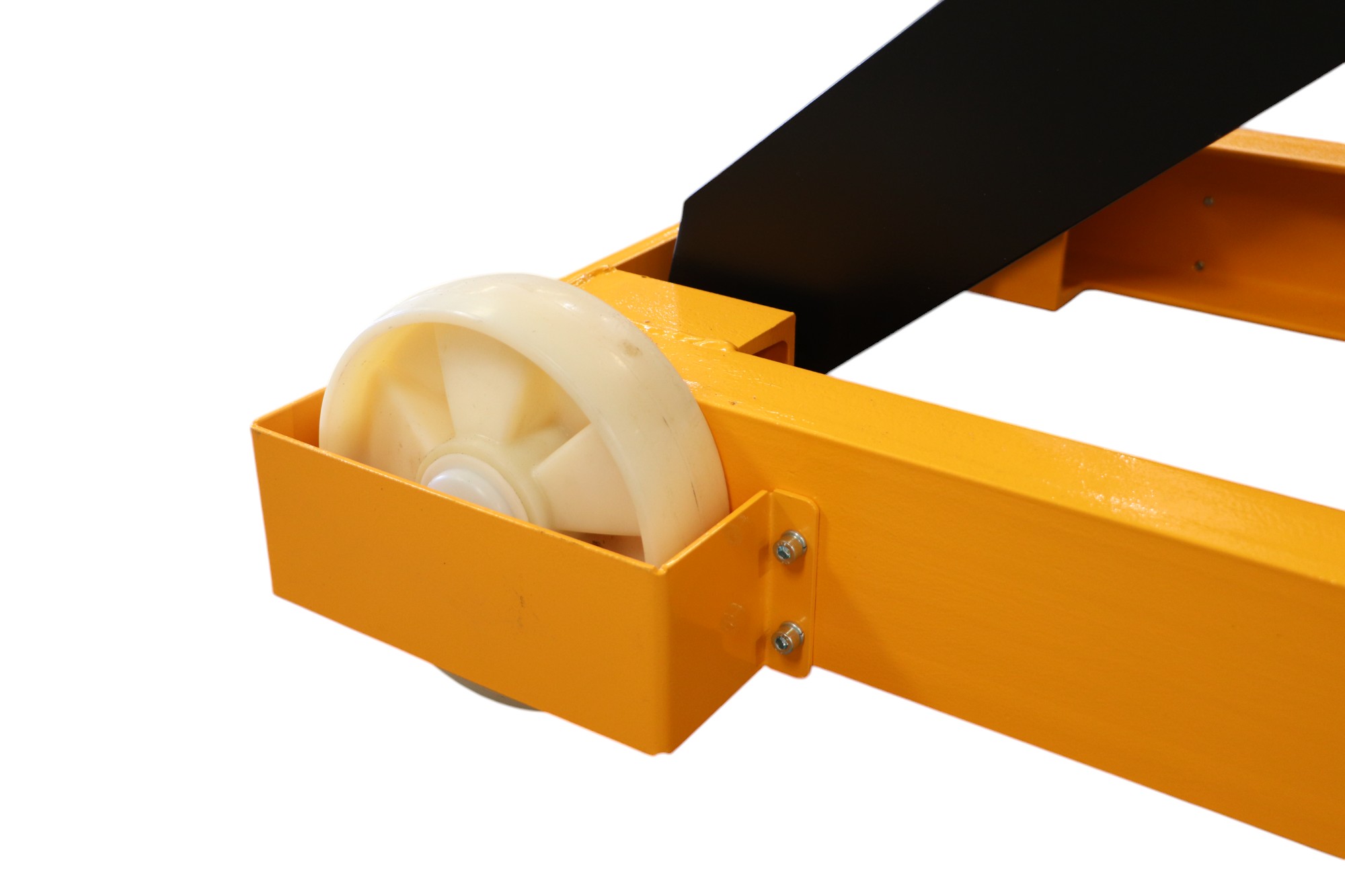

Nylon Wheel Type: Front Fixed 180x50mm / Rear Castor 80x40mm
Overall Length 2346mm
Handle Height 1000mm
Foot Pedal cycles to Max Height ≤200
Net Weight 350Kg

Spare Parts & Technical Support
