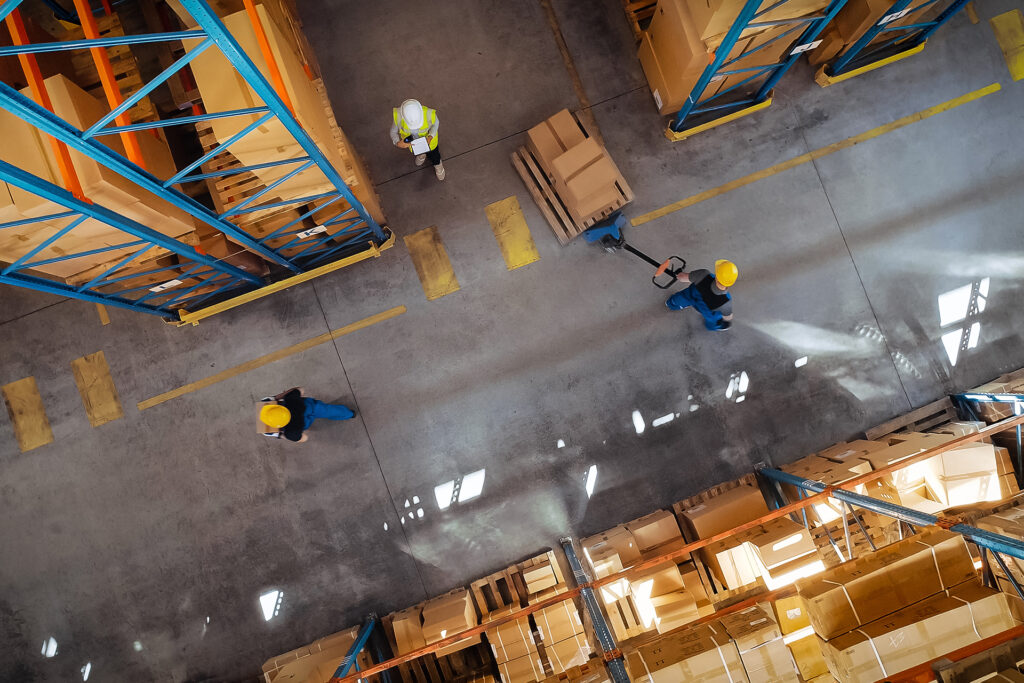

A strategic warehouse layout is one stone for many, many birds. The optimal configuration is ergonomic, efficient, and helpful for everyone on the ground, from warehouse operatives to vehicle drivers, and should even make the lives of external visitors easier.
As such, a simple adjustment to your warehouse floor plan can have a tangible impact on your bottom line and the day-to-day experience of your employees. In this guide, I’ll be drawing on 30+ years in the materials handling sector to give you an understanding of the basics and the steps you can take to streamline your operations.
Contents:
- TL;DR
- The Importance of Careful Planning
- Key Layout Considerations & Challenges
- Warehouse Floor Layout Examples
- Steps Towards Planning Your Own Warehouse Layout
- Conclusion
The Importance of Careful Planning
On the surface, the layout of a warehouse might seem inconsequential; secondary to your choice of equipment, inventory management software, supplier relations, and on-the-ground staff policy. However, more than a simple backdrop to the action, your warehouse layout actually impacts every single element I just listed.
The arrangement of the warehouse dictates where and how staff/equipment navigate the space, across both the internal and external parts of the facilities.
Ensuring that your equipment, people, and inventory are handled safely and efficiently, a well-thought-out floor plan directly translates into improved productivity and risk mitigation. You know the drill – together, that means healthier, happier workers and an improved bottom line to match.
To illustrate my point, take stock of some of the following benefits. An effective warehouse layout means:
- Greater productivity, given that routes are more streamlined from storage areas or packing zones to loading bays, and vice versa.
- Mitigated injury risk, as ergonomic principles can be applied to warehouse racking, aisle space, and travel times where employees use manual handling techniques.
- Minimised risk of collisions, which can be extremely expensive and damaging to your brand; case in point, the Ocado robot fire back in 2021.
- Improved equipment uptime, particularly if you strategically place charging areas for tools such as electric pallet trucks or autonomous mobile robots (AMRs).
- Reduced cross-contamination or food spoilage risk, because with the right warehouse configuration, you can keep consumable goods separate from contaminants.
- Increased customer satisfaction, thanks to the productivity gains and, thus, the speed at which products can be dispatched.
- Better flexibility and scalability – whether you’re moving towards a “right-sizing” inventory approach, or growth is on the horizon for your operations, the right warehouse layout should accommodate order fluctuations and operational changes.
Key Layout Considerations & Challenges
As you might expect, there’s no cookie-cutter solution to planning an efficient warehouse layout; the fundamentals will depend entirely on the nature of your operations. Organising a micro-fulfilment centre within a compact facility will look very different to the plans of a traditional large-scale distribution hub.
Nonetheless, the general considerations remain the same. So, as you weigh up the following, ask yourself: how can I best design the space to make it more efficient and easier for all its users?
Available Space
Likely the first issue to spring to mind, maximising the available space is an absolute must for ambitious site managers. Wasted, inefficient use of those precious square metres could spell lost potential during seasonal surges and limit your ability to pivot according to demand.
Of course, there will be certain limitations at play: the building’s dimensions will dictate which storage methods are possible and where to implement them.
In practice, adapting may look like bringing your storage upwards – in the form of shelving, racking, or an overhead mezzanine – to free up floorspace for manual aids like pallet trucks as well as automated storage and retrieval systems (AS/RS).
Here, always refer to Health & Safety England’s (HSE) best practices for clearance and working at height.
Health & Safety Legislation
Underpinning absolutely everything you do in the warehouse ought to be health and safety. As I mentioned in a previous guide, not only does it keep you compliant and efficient, but it equally compounds performance and profitability.
According to HSE’s warehousing and storage manual, HSG76, special attention should be paid to minimising manual handling hazards, slips and trips, vehicles moving in and around the site, plus working at height.
Concrete first steps could be reviewing the separation between pedestrian walkways and vehicle routes or taking action to reduce carrying distances for workers. After all, the transportation and storage industry is historically and to this day one of the most hazardous in terms of workplace injuries.
Equipment Use
The scope of equipment use will, likewise, have a sizeable impact on the compatible layout. Autonomous warehouse robots require a certain level of clearance to avoid collisions; bulkier types of forklifts need plenty of room to operate effectively; equipment running on battery power needs somewhere to safely recharge.
Then, there’s the correlation between facility size and which tools you can feasibly implement. A larger space will suit elements like conveyors and AMRs, whereas urban warehousing, on the other hand, calls for more compact materials handling aids to combat tighter turning circles, narrower aisles and higher stock density.
In each case, the solution lies in pinpointing the priority for efficiencies: where are the current bottlenecks and how can you alleviate them?
Operational Workflows
This is a huge one. Operational workflows set out how you intend to use the space, in terms of the flow of traffic, but also which types of storage are required. Manufacturing hubs, for instance, might wish to keep the layout as an extended production line, placing the production rooms right by the storage zone for convenience. In the same way, food processing operations will be limited by the position of refrigerators or the cold store.
However, straightforward drop-shipping operations, dealing with a single product, might have greater flexibility, the main consideration being the separation of loading/unloading bays to avoid congestion.
Load / Product Specs
The load or product itself may have some bearing on the possible layouts. If it’s multiple products with varying specs, you may have to divide storage into separate locations. This is especially important as it pertains to flammable or otherwise hazardous materials, but it’s equally important to getting your order picking right.
Cost-Efficiency
Unfortunately, all realistic plans are curtailed by budget. As is often the case with successful companies, you may wish to draw up several blueprints to cover basic tweaks through to the more sophisticated implementations of equipment and structural changes. As always, your choice should aim to balance upfront cost with long-term operational goals.
Warehouse Floor Layout Examples
While, indeed, there are numerous warehouse floor plans at your disposal, a handful of configurations rise to the top, not least because they’re tried and tested. These examples are popular because they drive efficiencies that allow businesses to excel, whilst remaining flexible to future opportunities and challenges.
Key Components
It’s also worth quickly noting that each warehouse shares the same fundamental components, which are as follows: receiving areas, storage facilities, packing zones, shipping areas, and then service areas for employees (e.g., staff rooms, management offices, reception and toilets).
In specialised use-cases, you may see additional items on that list; namely, a dedicated staging zone between receiving and storage areas. Their purpose? To streamline complex workflows that require extra space for unboxing shipments, splitting pallets, conducting quality control checks and the like.
Straight-Through Blueprint
The simplest option of them all, this warehouse layout is configured as a straightforward line. Here, goods enter at one end, before following a linear workflow, passing through each subsequent stage: quality checks, storage, any processing, and then loading at the opposite exit point.
Pros:
- Uncomplicated, intuitive navigation for full-time employees, visitors, and temporary staff, which translates into less onboarding time and reduced confusion.
- Its predictable flow streamlines operations running on a linear, sequential pipeline – think assembly lines or basic e-commerce fulfilment, wherein processes follow a set order of functions.
- Maximises usable space in smaller warehouses, where zoning would eat into practical capacity.
- Can form a smaller section or zone within a large warehouse facility.
Cons:
- Limited scope for flexibility and scaling, making it only a good choice for stable operations not expecting to grow.
- In larger facilities, the travel distances can be long, which impacts the risk of injury and fatigue.
- Unsuited to complex or back-and-forth operations, such as enterprise e-commerce involving returns or order modifications.
Suited to:
- Smaller warehouses.
- Linear production lines.
- Simple e-commerce with basic workflows or homogenous product lines.
U Layout
Conceptualised as a horseshoe or semi-circle, a U-shaped layout is a step up in workflow complexity when compared to the straight-line layout. On either end, we have the receiving and shipping areas and the storage zone in between. Although the design is still fairly uncomplicated, it centralises storage and inventory management as a key function whilst transportation is controlled more effectively.
Pros:
- Conserves dock space.
- Proximity between arrivals and dispatch makes for streamlined communication.
- Security coverage is made much easier with entry/exit points in close vicinity.
- Side-by-side receiving and shipping zones can share equipment and labour.
Cons:
- Congestion becomes a problem if the loading and unloading bays are spaced too closely together.
- Unmanaged inbound and outbound traffic can create a chokepoint in the central part of the ‘U’.
- Less efficient for larger facilities.
Suited to:
- Smaller buildings or medium-sized warehouses that handle both shipping and receiving but don’t have room for fully separate zones.
L-Shaped Floor Plan
In an L-shaped warehouse floor plan, receiving and shipping are found at either end of the ‘L’, with storage nested in the corner space. The intention with this layout is to create a natural bend in the operational flow to separate inbound and outbound traffic.
Pros:
- Keeps shipping and receiving separate, which reduces bottlenecks.
- Workflow overlap and potential collisions are minimised.
Cons:
- Requires more floorspace to create the 90-degree angle.
- Leads to inefficiencies in picking paths if planning is neglected.
Suited to:
- Warehouses with a moderate footprint and that require separation of receiving and shipping, without compromising on logical workflows.
- Operations that cross-dock.
Island / Modular Layout
Think of this arrangement as breaking the overall warehouse into distinct zones or ‘islands’, each around a designated factor, such as product type, temperature requirements, picking methods or processing stages. Here, the idea is to abandon linear flow for a more modular approach built around the specifics of your workflow.
Pros:
- Allows for pinpoint specialisation at each zone.
- Extremely customisable and scales effortlessly with changing demands.
- Ideal for segregating complex inventories and preventing cross-contamination.
Cons:
- Navigation can get complex, fast.
- Potential for inefficiencies between islands, if they’re not strategically placed.
- Planning takes much greater time, energy and resources.
- A more expensive solution than most.
Suited to:
- Operations where adaptability is central.
- When specialised storage solutions (e.g., temperature-controlled zones) are required.
- Businesses handling large, diverse inventory.
Steps Towards Planning Your Own Warehouse Layout
Whilst it’s likely – and recommended – that you consult with external experts, here are the usual steps required to plan for the optimal warehouse layout, so you know what to expect.
- Define your purpose and objectives: Before doing anything at all, it’s essential that your planning is grounded in your organisational purpose; after all, it’s this that will guide each of the following steps. So ask yourself: What are your priorities, flexibility or streamlining existing workflows? What inventory volumes are you tackling now? What will they look like in the future? The more you dig into this line of reasoning, the clearer the decision will become.
- Understand your space: In many cases, modifying an existing warehouse is more cost-efficient than moving facilities. That means taking measurements of ceiling heights, jotting down where support columns sit, noting aisle widths, dock doors, walkways and obstructions. With this knowledge, you can plan around them.
- Evaluate materials handling needs: Reevaluate which tools and equipment are best placed to streamline your operations. Will manual pallet trucks cover all bases, or would a blend of automation and traditional materials handling be more valuable?
- Map out your workflows: Create a diagram of your desired layout, preferably with a design software like Smartdraw or AutoCAD for accuracy. Here, your material flow should map onto the layout, from receiving and storage right through to dispatch. Of course, don’t forget to optimise for storage, using methods that support your picking method, whether it’s zone, batch, wave, or discrete
- Testing: The final stage before implementation is testing whether it works. Whilst you don’t need to overhaul your entire warehouse, it’s helpful to run through a trial. One way of doing this is by setting up a temporary perimeter based on the proposed measurements and walking through it, with your equipment in tow. Record your findings, acquire staff feedback and iterate until it feels right.
Conclusion: An Efficient Warehouse Layout is the Foundation to Success
Employee overwork. Congested aisles. Constant bottlenecks. These problems are the symptoms of a poor warehouse layout, which is failing to meet your operational needs – not necessarily because you’re lacking floor space, but because what you do have isn’t working as hard as it should.
Often, that means rethinking floor plans and adapting your day-to-day operations to correlate. Evaluate your storage setup and revisit your working capacity calculations; you may find that there’s potential quietly slipping away.
If upgrading your manual handling equipment falls under the remit of these improvements, you’re in good hands. Our industry specialists at Pallet Truck Shop are on hand to talk you through the options – just give us a call on 01384-841400.
FAQs
What Is the Most Efficient Warehouse Layout?
The most efficient warehouse layout depends on your operations, but all effective designs prioritise smooth workflow, minimal travel time, and safe separation of people, equipment, and inventory. Common options include straight-through, U-shaped, L-shaped, and modular layouts.
Why Is Warehouse Layout Important for Productivity?
Warehouse layout directly impacts how quickly and safely goods move through your facility. A well-designed layout reduces bottlenecks, shortens travel distances, and improves picking and packing efficiency, leading to faster order fulfilment.
How Can I Improve My Existing Warehouse Layout?
Start by analysing workflows, identifying bottlenecks, and measuring space constraints. Then adjust storage methods, reposition key zones like receiving and shipping, and test changes before full implementation to ensure efficiency gains.
What Factors Should Be Considered in Warehouse Layout Design?
Key factors include available space, health and safety regulations, equipment requirements, workflow patterns, product characteristics, and budget. Balancing these ensures a layout that is both practical and scalable.
Which Warehouse Layout Is Best for Small Spaces?
U-shaped and straight-through layouts are typically best for smaller warehouses, as they maximise usable space and simplify workflows while keeping travel distances short and operations easy to manage.
